Manufactured

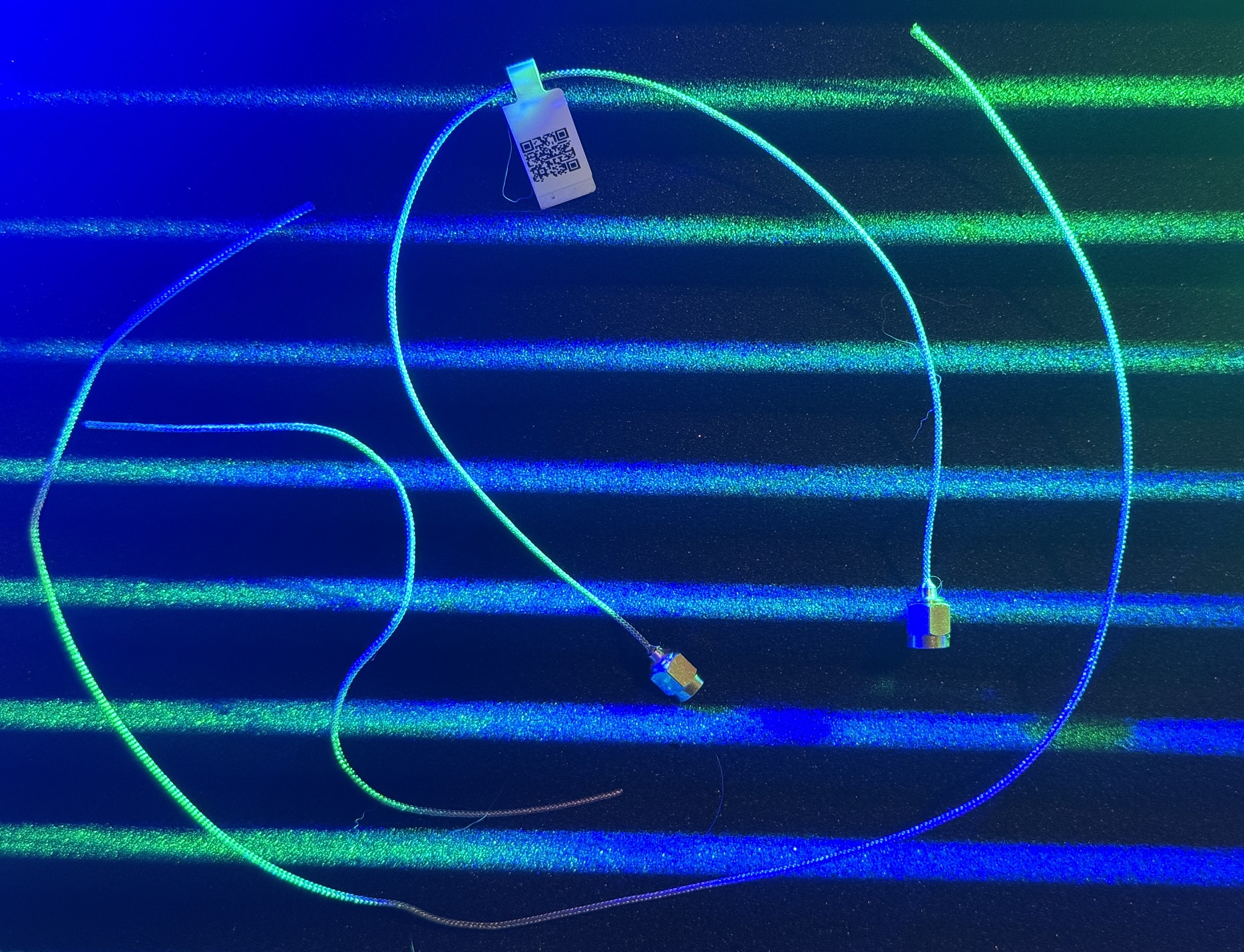

Cryogenic Flex — C1
Precision. Purity. Performance. PWG's current production cryogenic cable platform.
Product Catalog
Full reference for PWG Quantum's cryogenic cable platforms: model lineup, connector options, part-number scheme, and technical reference data. One model is in current production today — the remainder of the lineup is shown for planning purposes.
Status note: PWG-C1-0047-SMAM-0300 is the only currently manufactured catalog model. All other models shown below are prospective, planned, in development, future, or R&D, and are provided for planning and early-engagement purposes.
Product Families
Three platforms spanning current production through R&D.
Manufactured
In Development
Performance Cable — P1
Enhanced performance for demanding systems. Reliable, versatile, proven design direction.
R&D
Next-Generation Cable — X1
Designed for the most challenging applications. PWG's proprietary next-generation platform.
Engineered for ultra-low thermal load, high signal integrity, and reliable performance from 300 K down to 10 mK.
Cryogenic Ready
Reliable performance from 300 K down to 10 mK.
Low Loss
Optimized for minimal attenuation and phase noise.
Low-Noise Options (LN)
Construction optimized for reduced triboelectric and mechanically induced electrical noise.
Non-Magnetic Option (NM)
Qualified for magnetically sensitive environments.
Precision Engineering
Tight impedance control and dimensional tolerance.
High-Purity Construction
Manufactured under controlled processes with a focus on cleanliness and materials compatibility.
Connector Options (TERM)
Standard termination interfaces available across the PWG lineup.
SMAM
SMA (male), both ends.
SMPM
SMPM (male), both ends. Compact interface.
WSMP
WSMP (male), both ends. High-density interface.
MIXED
Different connectors on each end, e.g. SMAM / WSMP.
RAW
Unterminated cable, supplied as reel or cut length.
Product Number Scheme
Every PWG model number follows a consistent, decodable structure.
PWG – ARCH – OD – TERM – LEN – [-NM] – [-LN]
| Segment | Meaning |
|---|---|
| PWG | Company / technology |
| ARCH | Product family — C1, P1, or X1 |
| OD | Outer diameter, inches (4 digits) |
| TERM | Termination — see Connector Options |
| LEN | Length in millimeters (4 digits) |
| -NM | Non-Magnetic option (optional suffix) |
| -LN | Low-Noise option (optional suffix) |
Standard Lengths
- 0150 = 150 mm
- 0200 = 200 mm
- 0250 = 250 mm
- 0300 = 300 mm
- 0330 = 330 mm
- CUSTOM = custom length
Custom lengths use the actual manufactured length in millimeters, e.g. 0742.
Prospective Product Lineup
Full model reference across all three platforms. Contact us to confirm current availability and lead time for any model.
| Model Number | Arch | OD (in) | Term | Length (mm) | Options | Status | Notes |
|---|---|---|---|---|---|---|---|
| PWG-C1-0047-SMAM-0300 | C1 | 0.047 | SMAM | 300 | – | Manufactured | Baseline product |
| PWG-C1-0047-SMAM-0300-LN | C1 | 0.047 | SMAM | 300 | LN | Planned | Low-noise option |
| PWG-C1-0047-SMAM-0300-NM | C1 | 0.047 | SMAM | 300 | NM | Planned | Non-magnetic |
| PWG-C1-0047-SMAM-0300-NM-LN | C1 | 0.047 | SMAM | 300 | NM + LN | Planned | Non-magnetic + low-noise |
| PWG-C1-0047-SMAM-0500 | C1 | 0.047 | SMAM | 500 | – | Planned | Standard length |
| PWG-C1-0047-SMAM-1000 | C1 | 0.047 | SMAM | 1000 | – | Planned | Standard length |
| PWG-C1-0047-SMPM-0300 | C1 | 0.047 | SMPM | 300 | – | Planned | Compact interface |
| PWG-C1-0047-WSMP-0300 | C1 | 0.047 | WSMP | 300 | – | Planned | High density |
| PWG-C1-0047-RAW | C1 | 0.047 | RAW | – | – | Planned | Reel / cut cable |
| PWG-C1-0033-WSMP-0300 | C1 | 0.033 | WSMP | 300 | – | Future | Smaller OD |
| PWG-P1-0047-SMAM-0300 | P1 | 0.047 | SMAM | 300 | – | Development | Advanced performance |
| PWG-P1-0047-SMAM-0300-LN | P1 | 0.047 | SMAM | 300 | LN | Development | Low-noise option |
| PWG-P1-0047-SMPM-0300 | P1 | 0.047 | SMPM | 300 | – | Development | Compact interface |
| PWG-P1-0047-WSMP-0300 | P1 | 0.047 | WSMP | 300 | – | Development | High density |
| PWG-P1-0047-RAW | P1 | 0.047 | RAW | – | – | Development | Raw cable |
| PWG-X1-0047-SMAM-0300 | X1 | 0.047 | SMAM | 300 | – | R&D | Next-generation |
| PWG-X1-0047-WSMP-0300 | X1 | 0.047 | WSMP | 300 | – | R&D | Next-generation |
| PWG-X1-0047-RAW | X1 | 0.047 | RAW | – | – | R&D | Next-generation |
Option Key
NM
Non-Magnetic. Qualified non-magnetic construction for magnetically sensitive cryogenic environments.
LN
Low-Noise. Construction optimized for reduced triboelectric and mechanically induced electrical noise. Internal treatment and process are not disclosed.
Typical Specifications
| Impedance | 50 Ω |
|---|---|
| Frequency range | DC – 12 GHz standard (up to 50+ GHz custom, esp. P1/X1) |
| Operating temperature | 10 mK – 300 K |
| Standard lengths | 150 / 200 / 250 / 300 / 330 mm |
| Outer diameter (typ.) | 0.033 – 0.047 in |
| Termination options | SMAM, SMPM, WSMP, mixed ends, RAW |
Specifications are representative targets and may vary by model and configuration. All models are manufactured under controlled processes with a focus on cleanliness, materials compatibility, and reliable performance at cryogenic temperatures.
Typical Applications
- Quantum computing systems
- Cryogenic test and measurement
- Superconducting qubit control
- Cryogenic RF and microwave links
- Advanced sensing and instrumentation
